RightMark Audio Analyzer test report

Testing device Millenium DI-E Low Z
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.3.0


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.2 dB / -0.2 dB
Mono mode ON
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+1.71, -0.41
Average
Noise level, dB (A)
-96.9
Excellent
Dynamic range, dB (A)
96.9
Excellent
THD, %
0.0038
Very good
THD + Noise, dB (A)
-84.4
Good
IMD + Noise, %
0.069
Good
Stereo crosstalk, dB
-51.6
Poor
IMD at 10 kHz, %
0.0058
Excellent
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.53, +2.31
-0.53, +2.31
From 40 Hz to 15 kHz, dB
-0.41, +1.71
-0.41, +1.71



Noise level

Spectrum graph


Left
Right
RMS power, dB
-96.1
-96.1
RMS power (A-weighted), dB
-96.9
-96.9
Peak level, dB FS
-78.3
-78.3
DC offset, %
-0.0
-0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+96.1
+96.1
Dynamic range (A-weighted), dB
+96.9
+96.9
DC offset, %
+0.00
+0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0038
+0.0038
THD + Noise, %
+0.0051
+0.0051
THD + Noise (A-weighted), %
+0.0060
+0.0060

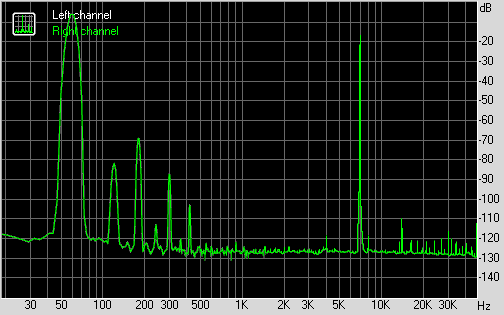

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0694
+0.0694
IMD + Noise (A-weighted), %
+0.0214
+0.0214

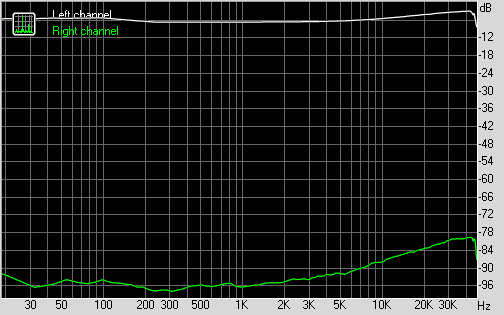

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-4
-93
Crosstalk at 1000 Hz, dB
-6
-95
Crosstalk at 10000 Hz, dB
-4
-87

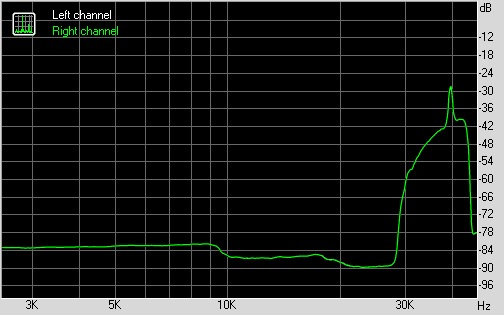

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0074
0.0074
IMD + Noise at 10000 Hz,
0.0051
0.0051
IMD + Noise at 15000 Hz,
0.0049
0.0049
